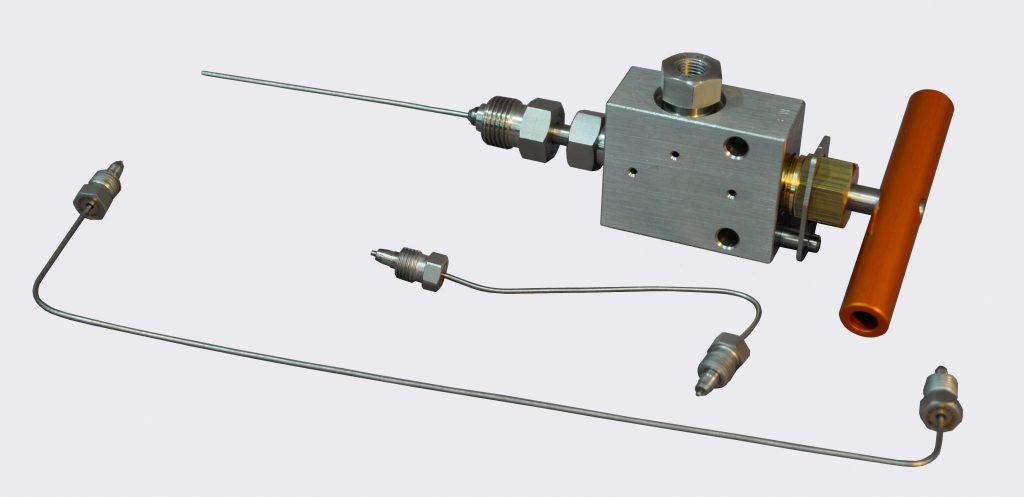

Mini Dosing Unit – MDS
| Maximum working pressure | 100 MPa (14.500 psi) |
| Maximum temparature | 180°C |
| Piston diameter | 8mm |
| Cylinder volume | 2,5ml |
| Drop needle | 1/16″ (ID 0,75mm) |
| Material | 316SS / HC276 (Hastelloy®) |
| Optional heating jaked | 230V / 115V |

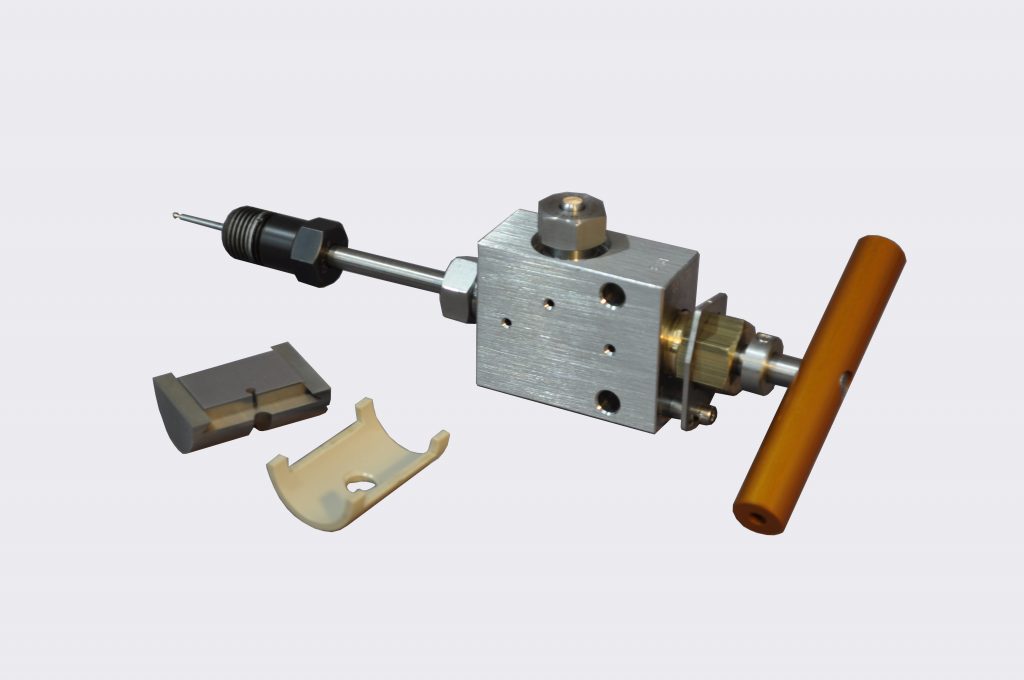

Moving table
In order to be able to place more than one drop on a solid surface in one run, a horizontal sliding system is provided which enables the user to move a solid sample inside the view chamber at experimental conditions. The slide is operated by a handle sticking out the front of the view chamber support.
Sample holder sets
PTFE rocksample holders
Glas Vessels, Glas dish
Tweesers
