PD-E-11000 LL-H

---

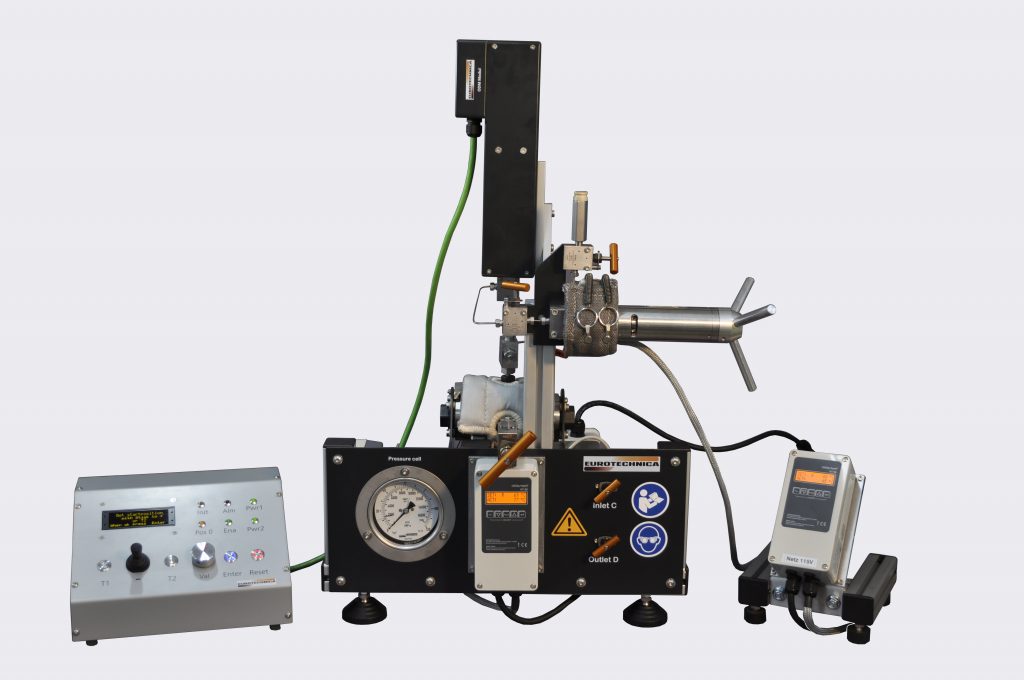

This High Pressure Lab Unit is available for different pressure ranges from 4 MPa (580 psi) up to 175 Mpa (25,000 psi) and is designed to be used together with the DSA100 from
Krüss GmbH.

---

580 psi	PDE140 / PDE140-LL
2.000 psi	PDE150-C
10.000 psi	PDE1700 / PDE1700-LL / PDE1700 MD
10.000 psi	PDE1700-H / PDE1700-H MD PDE1700LL-H (Hastelloy®)
25.000 psi	PDE11750-LL / PDE11750-LL-H (Hastelloy®)

---

PD-E 1700 – MD

Maximum working pressure	69 MPa (10.000 psi)
Maximum cell temperature	200°C
Optical diameter	18mm
Cell volume	30 ml
Drop needle	1/16″ (ID 0,75mm)
System tubing	1/8″ (ID1,77mm)
Material	316 SS

Mini Dosing Unit

Maximum working pressure	69 MPa (10.000 psi)
Piston diameter	8mm
Material	31 6SS

---

PD-E 700 MD

Maximum working pressure	69 MPa (10.000 psi)
Maximum cell temperature	200°C
Optical diameter	18mm
Cell volume	30 ml
Drop needle	1/16″ (ID 0,75mm)
System tubing	1/8″ (ID1,77mm)
Material	316 SS

Mini Dosing System

Maximum working pressure	69 MPa (10.000 psi)
Piston diameter	8mm
Material	31 6SS
